HTY-GIT01

Introduction

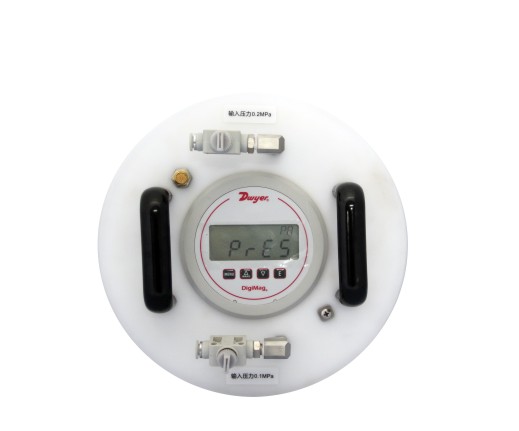

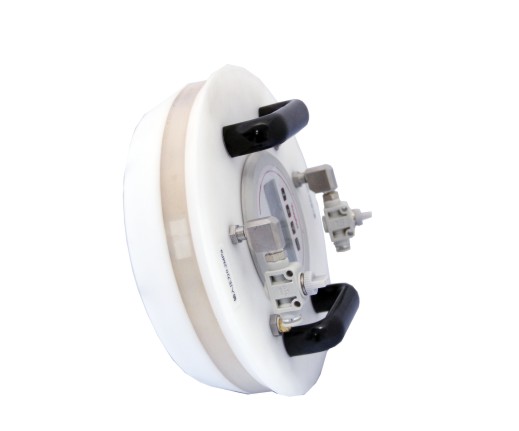

HTY Glove Integrity Tester is designed to check the integrity of Isolators / RABS systems gloves / sleeve or long gloves. It is artistic and efficient. HTY glove integrity tester includes a control panel that compatible with clean room and easy to operate, a control system, as well as a sealed cover matched with the isolator operating hatch. It can work in positive pressure mode. Test results will be displayed in numbers to the operator. Based on the reference values provided by the manufacturer, operator can ascertain the integrity of detecting gloves.

Features

It complies with the ISO14644-7 standards. It has a stainless steel welded base, and equipped with four casters, two can twist, two fixed. The tilt control panel help you easy to observe and operate. It also has an ergonomic mobile handle. Printing capabilities to deliver results is convenient to save records.The SIEMENS touch screen enable you to control the machine easily. Leak testing can be conducted before or after running the isolator. External compressed air and nitrogen are gas for test;

Parameter

1. Input pressure: 0.2MPa~0.6MPa

2. Inflation pressure: 500～1000Pa

3. Test Time: 5～8min

4. Pressure display resolution: 1Pa

5. Detection accuracy(smallest aperture):  500μm

6. Weight: 2.5kg

7. Host Dimension: 265mm（lenth）×265mm（width）×125mm

    （height）

8. Test Port Specifications: Ф255mm

    (Other specifications can be customized)

9. Battery: 9VI

Applications

HTY Glove Integrity Tester is designed to check the integrity of Isolators / RABS systems gloves / sleeve or long gloves.
