VHP Sterilization system



   HTY-V88     HTY-V100      HTY-V200      HTY-V600      HTY-Super SD6      HTY-SuperSD5     HTY-SuperSD2

HTY-SD5

Introduction

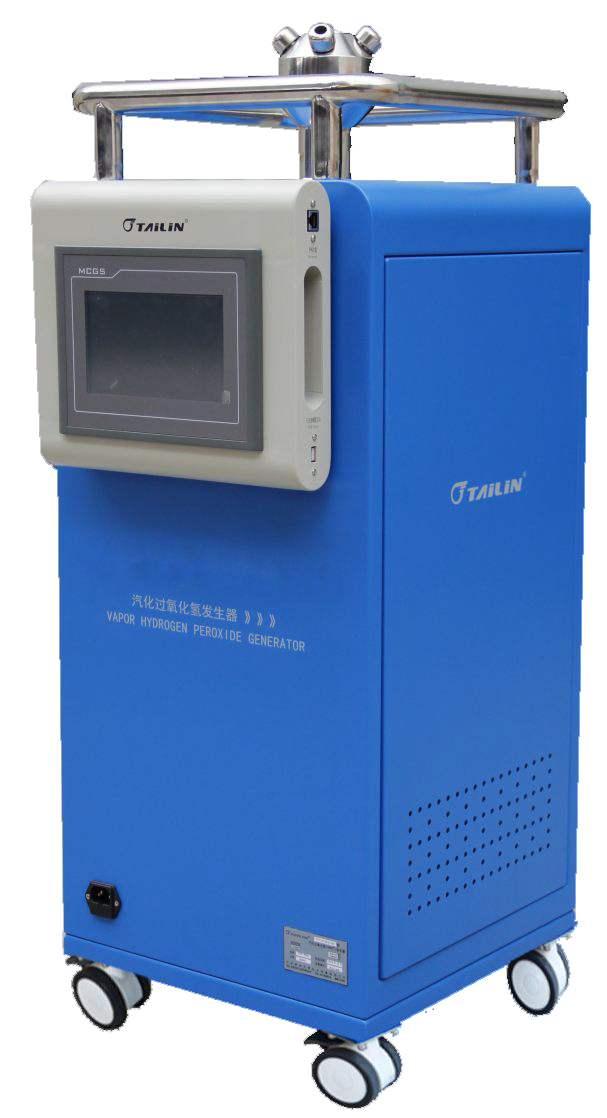

HTY-V600 Vapor Hydrogen Peroxide Generator (VHPS online

sterilization for enclosed space and lyophilizer)is an instrument

specially designed for biological decontamination. It can be used to

conduct VHPS online sterilization of lyophilizer as well. It takes the

advantages of that hydrogen peroxide has better sporicidal efficacy in

gas state than the liquid state at room temperature and that the

generated free hydroxyl groups are able to attack cell components,

including lipids, proteins and DNA organization, which achieves the

requirement of biological decontamination



Features

1. Security: under the room temperature and atmospheric pressure,

   non-toxic, no residue;

2. Fast: Fast sterilization cycle, cost-effective;

3. Effective: Hydrogen peroxide has excellent material compatibility

   (device, electronic components and building materials), much easier

   to do verification;

4. Extensive use: with the function of broad-spectrum bactericidal

   effect, it is applicable to sterilize fungi, bacteria, viruses and spores ;

5. Structure: double-barreled efficient carburetor, surrounded by 45 °

   spray nozzle, efficient catalytic decomposition, separate operating

   console; real-time printing, portable, easy to move



Parameter

1. Power supply: AC 220V/60Hz

2.Control Mode: Split Touch Screen

3. Maximum sterilization space: 150m³

4.ShellMaterial : painted steel

5. Weight: < 45kg

6. Sterilizing agent: 35% food grade hydrogen peroxide solution

7. Killing rate: the ability to kill stearothermophilus spores reaches 106

8. Dimensions: ( L×W×H) 360 mm×360mm×970 mm



Application

Small size, it even can be put in car trunk.

Suitable for space and ambulance sterilization.
